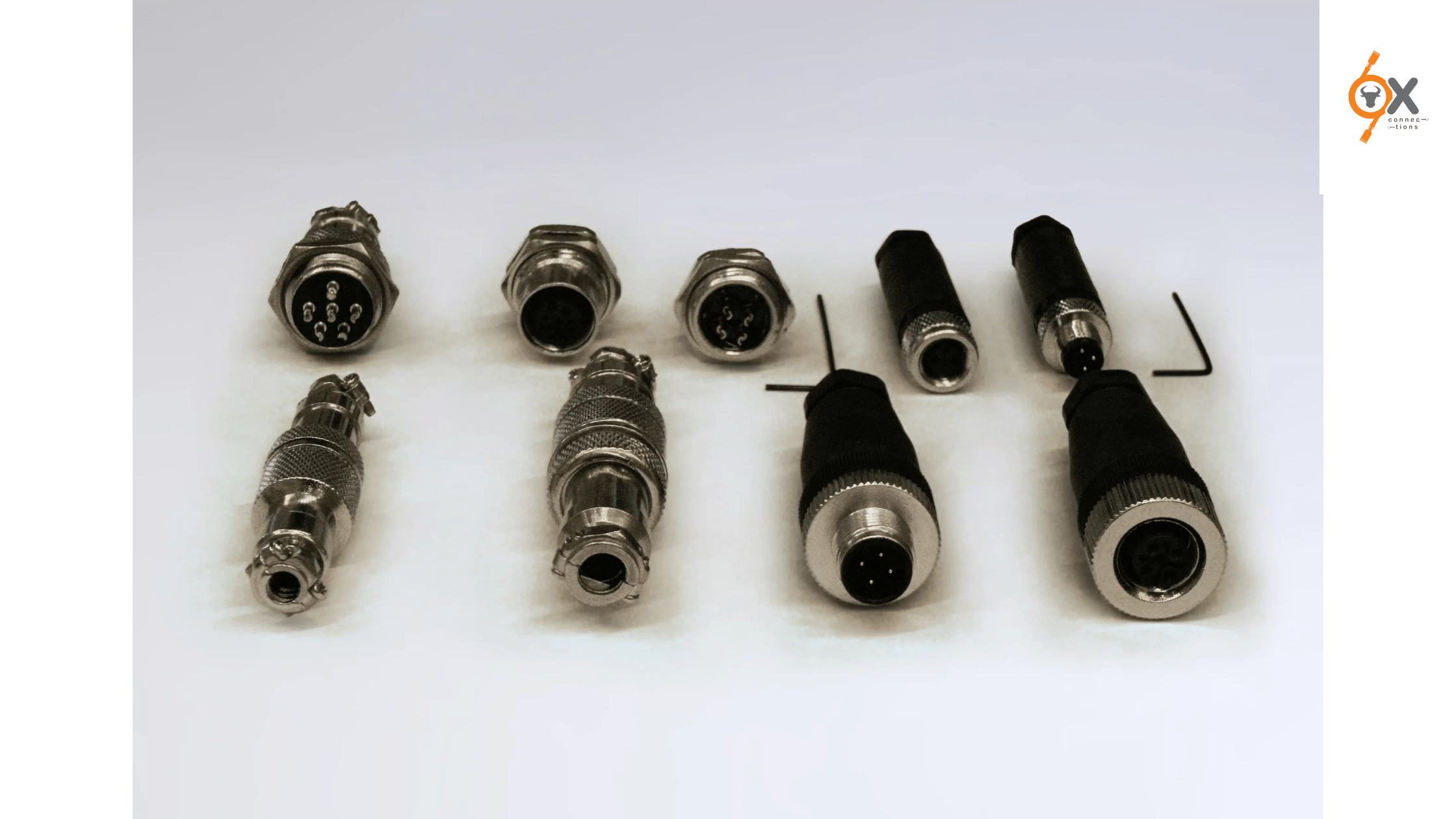

M-Series connectors are compact, circular connectors that provide reliable power, signal, and data transmission across demanding industrial environments. If you are comparing circular connector types for a new design or trying to standardise your sourcing, understanding the full M-Series range from M5 to M23 makes the selection process far simpler. This guide breaks down each size, its typical application, and the factors you should consider when choosing the right connector for your project.
What Are M-Series Connector?
M-Series connectors form a family of circular connectors named after their thread diameter in millimetres. The range starts at M5 and extends up to M23.
Factory automation, robotics, sensors, actuators, and process control systems commonly use these connectors. Their compact footprint and dependable locking mechanisms make them a practical choice for these applications.
The industrial circular connectors india market relies heavily on M-Series connectors for harsh-environment wiring. These connectors resist dust, moisture, and vibration, making them suitable for plant floors, outdoor installations, and mobile equipment.
Each size offers a specific balance of current rating, pin count, and physical space. Choosing the correct series therefore affects system reliability and installation speed.
M5 Connectors: Compact and Space-Constrained Applications
M5 connectors represent the smallest size in the range. They suit applications with very limited mounting space, such as miniature sensors and compact automation modules.
This size generally supports lower pin counts. Electronics manufacturers often choose M5 connectors when board space remains limited.
M8 Connectors: Sensors and Actuators
M8 connectors serve as a common choice for sensor and actuator wiring.
They offer a compact design with several pin configurations. Their small size and secure locking mechanism make them suitable for close-quarter automation cabling on machine tools and packaging lines.
M12 Connectors: Industrial Ethernet and Field-Bus Networks
M12 represents the most widely specified size in the M-Series family. Industrial Ethernet, field-bus systems, and general sensor wiring commonly use M12 connectors.
M12 connectors come with A, B, D, and several other coding options. They also support different pin counts, panel-mount formats, and field-attachable formats.
These options give engineers greater flexibility when designing industrial installations.
M15 Connectors: Encoder and Servo Motor Feedback
M15 connectors commonly serve encoder and servo motor feedback applications where precise signal integrity matters.
They bridge the gap between the smaller M12 size and the higher pin-count M16. This makes M15 connectors suitable for motion control systems that need additional conductors without taking up excessive space.
M16 Connectors: Combined Power and Signal in Robotics
M16 connectors work well when an application needs power and signal connections through a single connector. Robotics and machine-building applications frequently use this configuration.
M16 connectors support higher pin counts than M12 or M15. Shielded versions also provide effective EMC protection in electrically noisy environments.
M20 Connectors: Higher-Current Industrial Applications
M20 connectors offer higher current-carrying capacity than smaller M-Series options.
They suit industrial equipment that requires robust power delivery alongside control signals. Heavy machinery and process control panels can benefit from this connector size.
M23 Connectors: Heavy-Duty High-Current Power
M23 represents the largest size in the range. It supports heavy-duty, high-current power transmission.
Large motors, industrial drives, and other equipment with high pin-count requirements commonly use M23 connectors. Their robust construction also supports applications that demand strong mechanical durability during continuous operation.
Panel Mount vs Field-Attachable Formats
M-Series connectors come in both panel-mount and field-attachable formats.
The right choice depends on how you plan to install and service the equipment.
Panel-mount connectors attach directly to an enclosure or housing during assembly. They provide a permanent and vibration-resistant termination point for factory-built machinery.
Field-attachable connectors allow technicians to complete wiring on-site. This option works well when projects require custom cable lengths, repairs, or cable routing decisions after equipment reaches the installation floor.
Straight and angled versions give designers additional flexibility across most M-Series sizes. These configurations help when limited cable clearance creates challenges around a panel or enclosure.
Key Features Across the M-Series Range
The M-Series range shares several features that make it a dependable choice among circular connector types.
These features include quick-locking mechanisms for faster installation, shielded versions for EMC protection, and IP-rated sealing that protects against dust and moisture.
The range includes straight, angled, panel, and field-attachable versions.
You can also choose solder type male and female connectors, panel mounting sockets, and PCB mounting ST and R/A types.
Pin configurations across the family range from 2 pin to 12 pin. This broad selection covers most industrial wiring requirements without forcing engineers to switch between connector families.
How to Choose the Right M-Series Connector
Start your selection process with three key questions:
- How much current and how many signal lines need to pass through the connector?
- How much physical space do you have for mounting?
- What level of environmental protection does the application require?
As a general rule, M5 and M8 connectors suit compact sensor and actuator wiring.
M12 and M15 connectors cover many industrial networking and feedback applications.
M16 through M23 connectors support higher pin counts and heavier power loads.
Compare these requirements with your m series connector specifications to narrow your options. You should also cross-check the coding type and mounting style against your existing panel design.
Why Choose Ox Connections for M-Series Connectors?
OxConnections stocks over 5,000 products and can dispatch them within 48 hours. This gives OEMs and distributors across India fast access to the full M-Series range.
Every connector meets applicable global standards and undergoes durability testing. This helps you maintain dependable connectivity without relying on long lead times.
Whether you need a single M12 sample for prototyping or bulk M23 connectors for a production run, our team can help you select the right series, coding, and mounting type for your application.
Our catalogue includes solder type male and female connectors, panel mounting sockets, and PCB mounting ST and R/A types.
This range allows many projects to source their connectivity requirements from one supplier instead of coordinating with multiple vendors.
Reach out to our team to discuss your specific requirement, request a sample for testing, or download the full product catalogue to compare specifications across the entire M-Series range.
