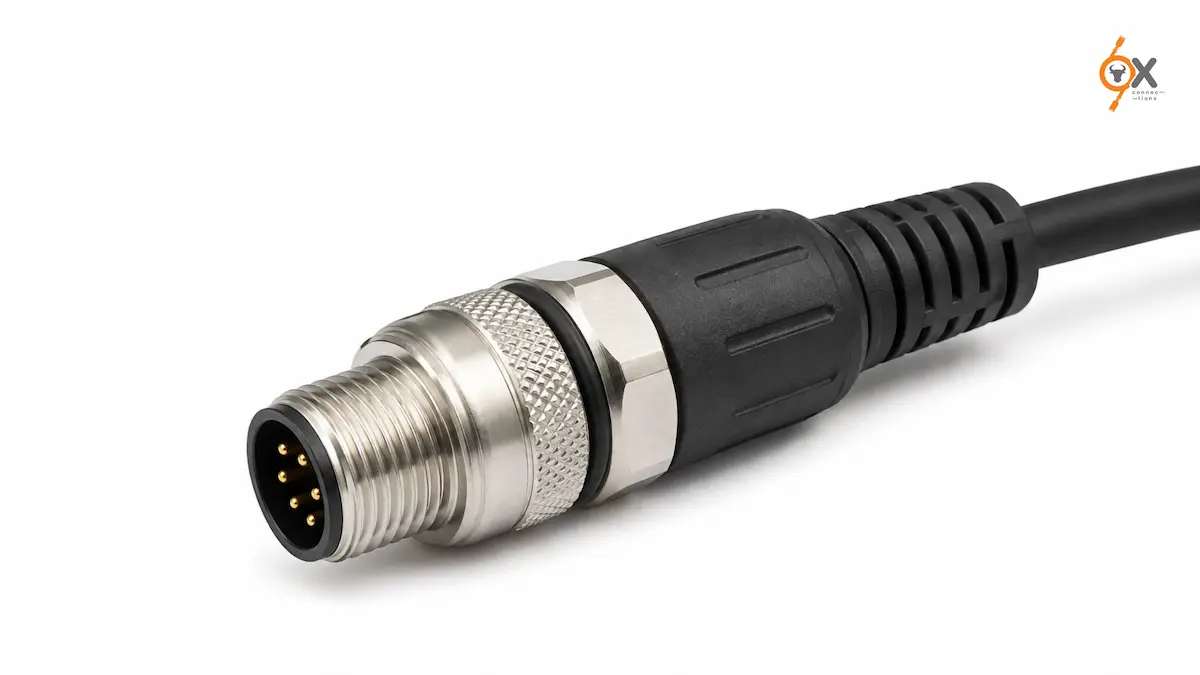

A servo drive depends on an accurate feedback signal. A loose connection, electrical noise, or poor sealing can disrupt that signal. The entire motion control loop can then suffer without an obvious cause. The M15 connectors encoder interface addresses this problem. This connector size suits applications that need reliable position and speed feedback from the motor to the drive.
The Feedback Signal Problem M15 Was Built to Address
Encoder and resolver feedback signals operate at low levels and can pick up interference. The connector must therefore do more than complete a circuit. It must maintain shielding integrity and resist motor vibration. It must also maintain a stable connection through thousands of duty cycles.
M15 provides enough pins for typical encoder feedback lines. These lines can include power, ground, and multiple signal channels. The connector also remains compact enough for direct mounting on a servo motor housing without adding significant bulk.
A Note on Encoder Types and Signal Formats
Servo feedback uses several formats. These include incremental encoders, absolute encoders, and resolvers. Each format communicates position data differently.
The physical M15 connector interface can remain consistent, but the internal pin assignment can change with the feedback protocol. A connector configured for one encoder type may not work with another without the correct pinout.
Always check the motor manufacturer’s documentation against the connector pin map before ordering in volume. This simple check can prevent commissioning delays caused by pin mismatches.
Where This Connector Shows Up in Motion Control
M15 connectors commonly support encoder and resolver feedback on servo motors. CNC machines, robotic arms, and automated assembly equipment use these systems. Whenever a control system needs real-time motor shaft position, an M15 connector encoder interface can carry the feedback signal to the drive.
Some systems also use M15 connectors for motor brake feedback lines and auxiliary sensor circuits. Combining these connections can reduce the number of cable runs around a compact motor housing.
Why Shielding Matters More on This Size
Feedback signals can react strongly to electrical noise. Shielded versions of this connector can therefore play an important role near variable-frequency drives and other high-current equipment.
Poor shielding can allow electromagnetic interference from nearby power cables to affect the feedback signal. The resulting errors can cause erratic motor behaviour. Engineers may then mistake the problem for a drive or software fault.
Grounding also affects shielding performance. Follow the motor manufacturer’s grounding recommendation. In some installations, grounding the shield at one end can provide better noise rejection. Grounding at both ends can create a ground loop and introduce additional interference.
Engineers specifying a servo motor feedback connector should confirm shielding and grounding requirements early. This approach can help prevent difficult-to-trace faults after equipment enters service.
Build Considerations for Motor-Mounted Applications
M15 connectors often mount directly on equipment that experiences vibration or movement. A secure locking mechanism therefore plays an important role.
A self-locking mechanism can help prevent loosening during continuous vibration. Engineers usually choose straight or angled body styles according to the available clearance around the motor housing and cable exit point.
Sealing performance also depends on the operating environment. Motors installed outdoors or in washdown areas may require higher ingress protection than motors inside climate-controlled cabinets.
Maintenance and Field Replacement Considerations
Encoder feedback connectors can experience thermal cycling and repeated cable flexing near the connection point.
A field-attachable version can simplify connector replacement in equipment that requires field servicing. Technicians can replace the connector without replacing the entire feedback cable.
Critical equipment can also benefit from a small stock of pre-configured spares. A feedback connector failure on a production-line servo motor can cause immediate downtime. Keeping spares available can help reduce repair delays.
Sourcing M15 Connectors from Ox Connections
Ox Connections stocks over 5,000 products with dispatch within 48 hours. This availability helps motor and drive assembly lines source feedback wiring components without long waits.
As an established M15 connector supplier india, Ox Connections can help OEMs confirm the right pin configuration, shielding, and mounting format for their servo or encoder setup.
If you’re specifying feedback connectors for a new motor design or standardising across an existing product line, contact our team to request a sample or download our full product catalogue for detailed specifications.
