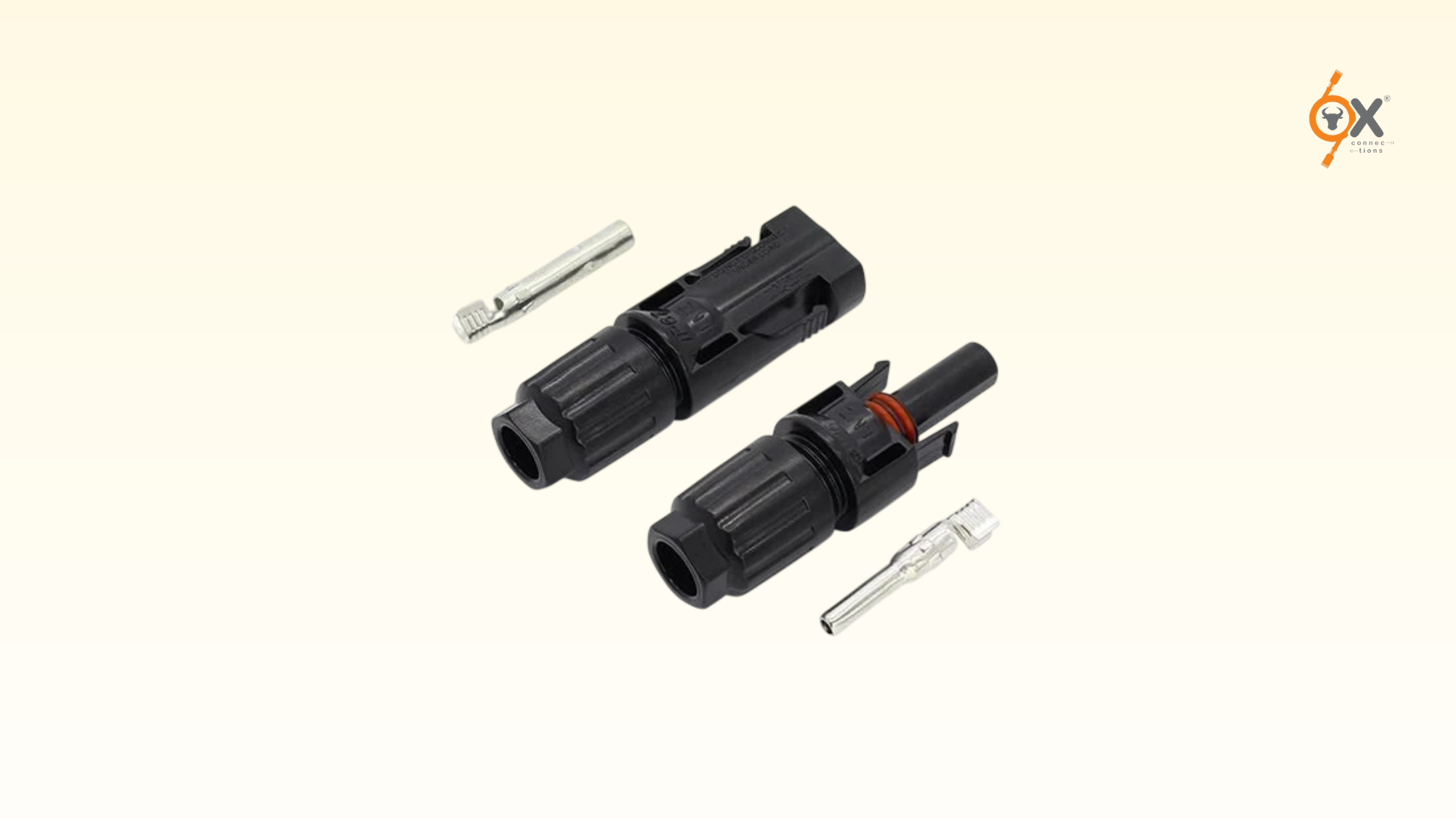

MC4 connectors are the standard interface for solar panel and inverter DC connections. Their design threaded locking, sealed housing, spring-loaded contacts makes them suitable for outdoor installations where connections need to remain reliable for decades. But “MC4” has become a generic term, and quality varies significantly between manufacturers. For solar panel manufacturers and inverter OEMs, connector quality directly impacts field reliability and warranty exposure.
At OX Connections, we supply MC4 connectors to major solar manufacturers across India. Our track record is straightforward: lakhs of connectors supplied, zero rejections. This reliability comes from supplying certified connectors that meet the specifications solar equipment demands, backed by proper documentation and consistent quality control.
Why Does MC4 Connector Quality Matter in Solar Manufacturing?
Solar installations operate outdoors for decades. Connectors are exposed to UV radiation, temperature cycling, moisture, and mechanical stress. The connection quality at each junction point affects system performance. Poor contact design leads to increased resistance. Increased resistance generates heat. Heat accelerates degradation, potentially leading to connection failure.
For panel manufacturers, connector failures in the field become warranty claims. For inverter OEMs, connection issues can be attributed to equipment problems even when the root cause is connector quality. The connector might seem like a small component, but its reliability affects the entire system.
Quality MC4 connectors maintain consistent performance through proper engineering: spring-loaded contacts that maintain pressure over time, UV-stabilized housing materials that resist degradation, and sealing systems that prevent moisture ingress. These aren’t premium features they’re basic requirements for outdoor electrical connections lasting decades.
What Defines a High-Quality MC4 Connector?
The contact system in MC4 connectors uses multiple spring elements engaging the mating pin. This design maintains electrical contact even as individual springs experience some relaxation over time. Quality contacts use proper materials and plating to resist corrosion and maintain low contact resistance.
The locking mechanism requires deliberate action to disconnect. This prevents accidental separation during installation or when cables experience tension. The mechanical lock is essential for maintaining reliable connections in installations where cables may move due to thermal expansion or wind.
Housing materials must withstand prolonged UV exposure without becoming brittle. Quality housings maintain mechanical strength and sealing integrity over extended outdoor exposure. Substandard materials may develop cracks or lose sealing properties, allowing moisture ingress that corrodes contacts.
Proper sealing achieves IP67 or IP68 ratings, preventing moisture and dust ingress. The seal must function across the temperature range solar installations experience, maintaining integrity through monsoons and dry seasons. Quality sealing materials remain flexible and effective over time rather than hardening and cracking.
Why Are TÜV Certifications Important for MC4 Connectors?
TÜV certification for MC4 connectors verifies compliance with specific electrical and mechanical requirements. Testing includes contact resistance measurement, current capacity verification, temperature cycling under load, UV aging, mechanical strength, and environmental sealing validation.
For panel manufacturers, certifications matter because panel standards (IEC 61215, IEC 61730) require that components meet relevant specifications. Using certified connectors supports panel certification and provides documentation for quality management systems.
For inverter manufacturers, certified connectors on DC cables demonstrate component quality in case of field issues. Proper documentation protects manufacturers by showing due diligence in component selection.
At OX Connections, we provide complete certification documentation with MC4 connectors TÜV certificates, test reports, and compliance declarations. This documentation supports your quality systems and provides protection if warranty questions arise.
Applications in Solar Manufacturing
Panel Manufacturing: Solar panels typically ship with MC4 connectors factory-installed on junction box cables. Panel manufacturers need consistent connector quality to avoid production issues. When producing at scale, variation in connector quality—inconsistent mating force, marginal crimps, or seal issues—creates problems that slow production and affect reliability.
Inverter Manufacturing: String inverters and central inverters use MC4 connectors for DC input connections. Inverters handle high DC voltages and currents, making connector quality particularly important. Contact resistance directly affects inverter efficiency and reliability. Poor connections can cause voltage drops that affect inverter performance.
Cable Assembly: Pre-assembled DC cables with factory-installed MC4 connectors require consistent quality across production batches. Cable manufacturers need reliable connectors that crimp consistently and maintain specifications across high-volume production.
Stock Availability and Lead Times
Solar manufacturing operates on project schedules. Component availability affects production timelines. When panel manufacturers or inverter OEMs have orders to fulfil, they need connectors available when production requires them.
We maintain ex-stock inventory of MC4 connectors because solar project timelines often don’t accommodate extended lead times. Standard MC4 connectors ship within days from existing stock. For specialized requirements specific cable gauges, custom cable lengths, or voltage ratings lead times typically run two to three weeks, substantially shorter than importing components directly.
This availability provides flexibility for manufacturers managing multiple projects with different timing requirements. You’re not forced to over-inventory components or delay production waiting for shipments.
Selecting MC4 Connectors
Voltage Rating: Verify connectors are rated for your system voltage. Standard MC4 connectors typically handle 1000V DC. Systems operating at 1500V require connectors specifically rated for higher voltage. Using inadequately rated connectors creates safety issues and warranty liability.
Current Rating: MC4 connectors typically handle 30A continuous current. Verify the rating meets your maximum string current requirements. Consider temperature derating factors for your operating environment.
Cable Compatibility: MC4 connectors are available for different cable cross-sections. Match connector specifications to your cable gauge to ensure proper crimping and sealing. Common sizes include 4mm², 6mm², and 10mm² cable.
Gender and Polarity: Panel manufacturers typically use male connectors on positive leads and female on negative, though configurations vary. Inverters need corresponding gender configuration. Verify requirements before ordering to avoid compatibility issues.
Certification Requirements: Confirm certification requirements for your market and application. TÜV certification is widely recognized, but specific markets may have additional requirements.
Common Questions
How do I verify connector quality and certification?
Request certification documentation including TÜV certificates and test reports. Verify manufacturer markings on connectors match certification documentation. Physical inspection should show consistent moulding quality, proper contact spring tension, and secure cable sealing. We provide complete certification documentation with orders.
Can I mix MC4 connectors from different manufacturers?
While MC4 is a standardized design, mechanical tolerances vary between manufacturers. Mixing connectors can result in loose connections or excessive mating force. For reliability, use matched pairs from the same manufacturer within an installation.
What documentation do you provide with connectors?
We provide TÜV certification, test reports, compliance declarations, and technical datasheets. This documentation supports quality management systems and provides protection for warranty situations.
Do you supply pre-assembled cables?
We supply both individual connectors for field crimping and pre-assembled cable sets with factory-crimped connectors. Pre-assembled cables ensure consistent crimp quality and simplify production for manufacturers.
What are lead times for standard versus custom requirements?
Standard MC4 connectors ship within days from stock. Custom requirements specific cable lengths, particular voltage ratings, or specialized configurations typically require two to three weeks. We can provide specific timelines based on your requirements.
Working with OX Connections
For solar panel and inverter manufacturers, connector quality affects field reliability and warranty exposure. Our MC4 connectors meet certification standards, demonstrate proven reliability through lakhs of installations with zero rejections, and are available ex-stock for production scheduling.
Contact us at [email protected] with your requirements quantities needed, voltage ratings, cable specifications, and certification requirements. Include your application context (panel manufacturing, inverter production, or cable assembly) so we can recommend appropriate configurations.
We provide technical specifications, complete certification documentation, and samples for qualification testing. Response time is typically 24-48 hours, with standard configurations shipping within days.
When manufacturing solar equipment, connector quality provides reliability that protects your warranty exposure and reputation
